Question: Extra Credit Assignment 200 - Creating Project Network Diagram (manually) 1 Understand activity relationships Finish to Start ID Dur Predecessor A 40 None B 25

Understand activity relationships Finish to Start ID Dur Predecessor A 40 None

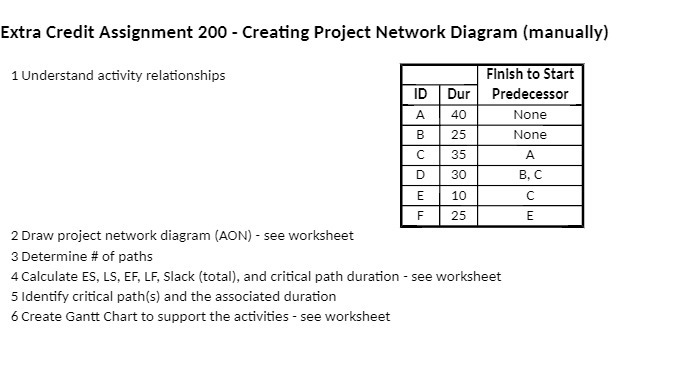

Extra Credit Assignment 200 - Creating Project Network Diagram (manually) 1 Understand activity relationships Finish to Start ID Dur Predecessor A 40 None B 25 None C 35 A D 30 B. C E 10 C F 25 E 2 Draw project network diagram (AON) - see worksheet 3 Determine # of paths 4 Calculate ES, LS, EF, LF, Slack (total), and critical path duration - see worksheet 5 Identify critical path(s) and the associated duration 6 Create Gantt Chart to support the activities - see worksheet

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
