Question: How do I figure out part C ? An automatic lathe produces rollers for roller bearings, and the process is monitored by statistical process control

How do I figure out part C ? An automatic latheHow do I figure out part C ? An automatic lathe

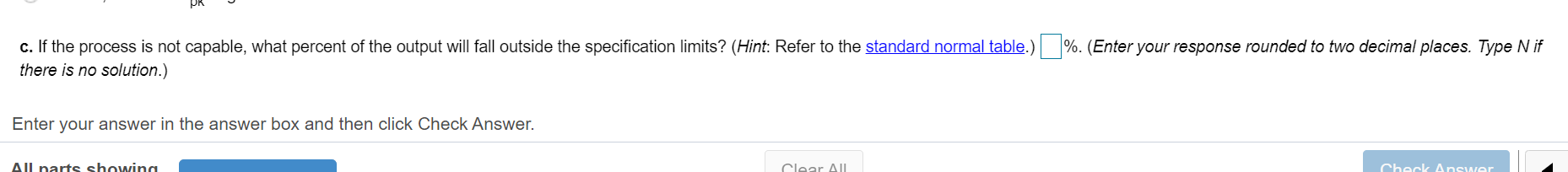

How do I figure out part C ?

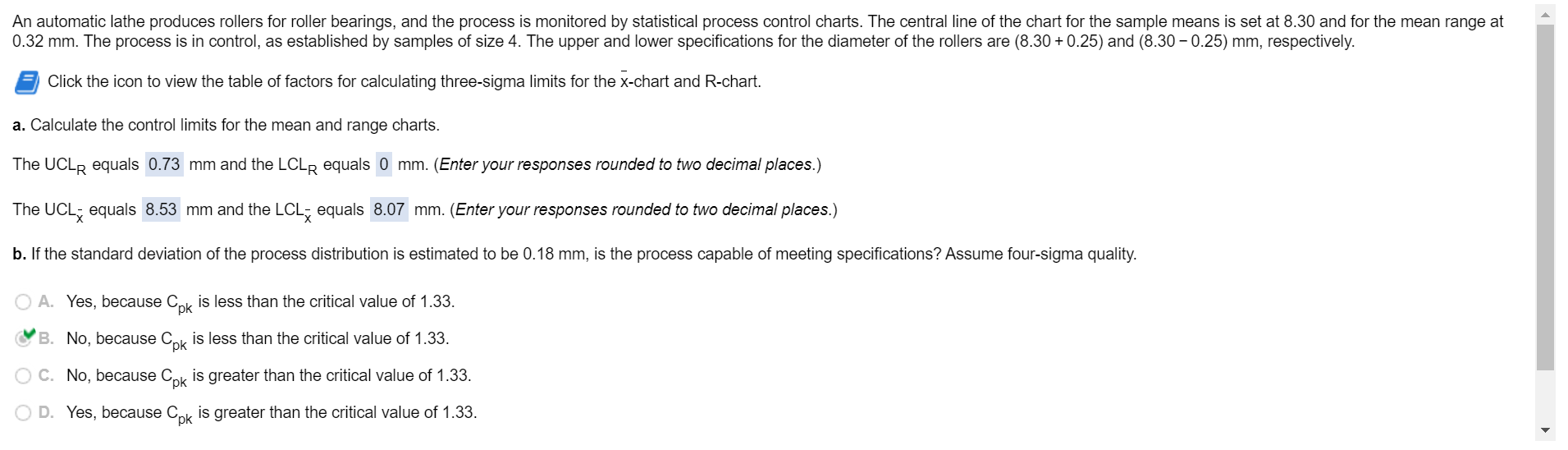

An automatic lathe produces rollers for roller bearings, and the process is monitored by statistical process control charts. The central line of the chart for the sample means is set at 8.30 and for the mean range at 0.32 mm. The process is in control, as established by samples of size 4. The upper and lower specifications for the diameter of the rollers are (8.30 +0.25) and (8.30 0.25) mm, respectively. Click the icon to view the table of factors for calculating three-sigma limits for the x-chart and R-chart. a. Calculate the control limits for the mean and range charts. The UCLR equals 0.73 mm and the LCLR equals 0 mm. (Enter your responses rounded to two decimal places.) The UCL; equals 8.53 mm and the LCL, equals 8.07 mm. (Enter your responses rounded to two decimal places.) b. If the standard deviation of the process distribution is estimated to be 0.18 mm, is the process capable of meeting specifications? Assume four-sigma quality. O A. Yes, because Cpk is less than the critical value of 1.33. B. No, because Cpk is less than the critical value of 1.33. O C. No, because Cpk is greater than the critical value of 1.33. OD. Yes, because Cpk is greater than the critical value of 1.33. C. If the process is not capable, what percent of the output will fall outside the specification limits? (Hint: Refer to the standard normal table.) %. (Enter your response rounded to two decimal places. Type Nif there is no solution.) Enter your answer in the answer box and then click Check Answer. All parts showing Clear All Check
