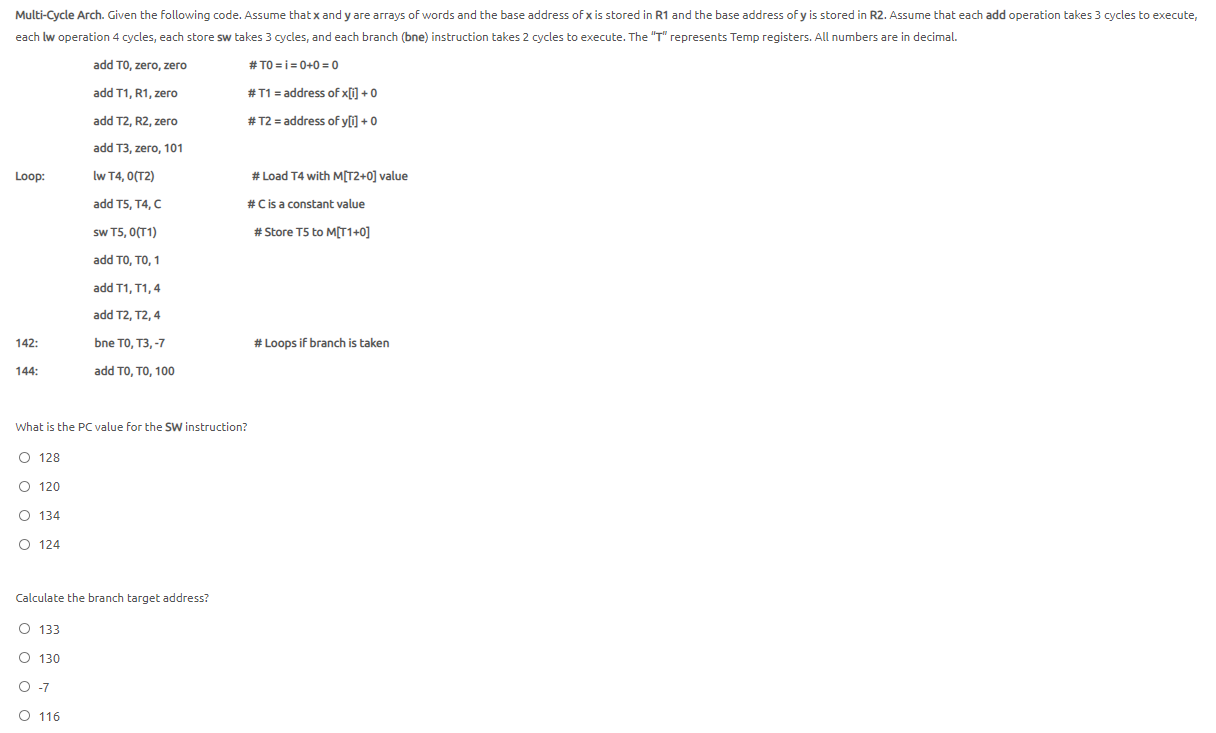

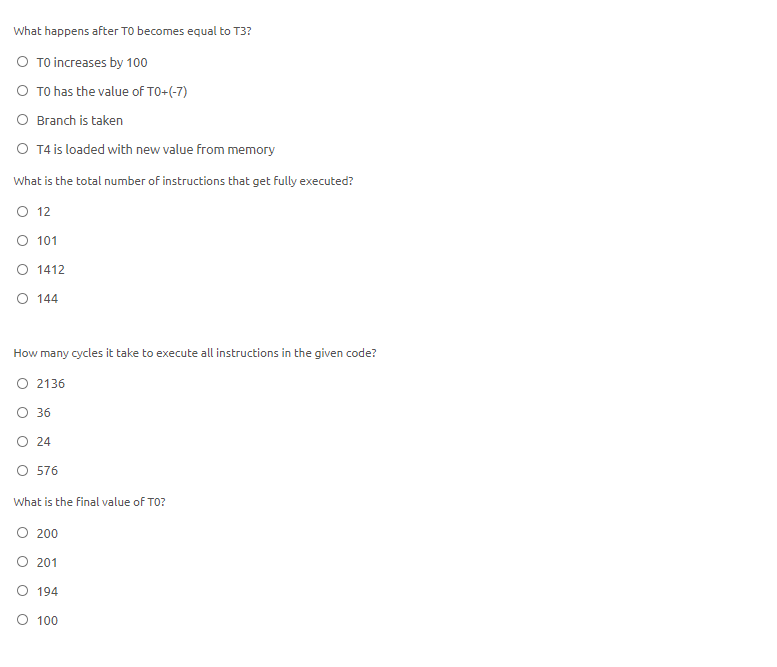

Multi-Cycle Arch. Given the following code. Assume that x and y are arrays of words and the base address of x is stored in R1 and the base address of y is stored in R2. Assume that each add operation takes 3 cycles to execute, each lw operation 4 cycles, each store sw takes 3 cycles, and each branch (bne) instruction takes 2 cycles to execute. The "T" represents Temp registers. All numbers are in decimal. add TO, zero, zero # TO = i = 0+0 = 0 add T1, R1, zero #T1 = address of x[i] + 0 add T2, R2, zero #T2 = address of y[i] +0 add T3, zero, 101 Loop: lw T4, 0(T2) #Load T4 with M[T2+0] value add T5, T4, # C is a constant value sw T5, O(T1) #Store T5 to M[T1+O] add TO, TO, 1 add T1, T1,4 add T2, T2,4 142: bne TO, T3, -7 #Loops if branch is taken 144: add TO, TO, 100 What is the PC value for the SW instruction? O 128 O 120 O 134 O 124 Calculate the branch target address? 0133 0 130 O-7 O 116 What happens after to becomes equal to 13? To increases by 100 OTO has the value of TO+(-7) O Branch is taken T4 is loaded with new value from memory What is the total number of instructions that get fully executed? O 12 O 101 O 1412 O 144 How many cycles it take to execute all instructions in the given code? O 2136 O 36 O 24 O 576 What is the final value of TO? 200 O 201 O 194 O 100 Multi-Cycle Arch. Given the following code. Assume that x and y are arrays of words and the base address of x is stored in R1 and the base address of y is stored in R2. Assume that each add operation takes 3 cycles to execute, each lw operation 4 cycles, each store sw takes 3 cycles, and each branch (bne) instruction takes 2 cycles to execute. The "T" represents Temp registers. All numbers are in decimal. add TO, zero, zero # TO = i = 0+0 = 0 add T1, R1, zero #T1 = address of x[i] + 0 add T2, R2, zero #T2 = address of y[i] +0 add T3, zero, 101 Loop: lw T4, 0(T2) #Load T4 with M[T2+0] value add T5, T4, # C is a constant value sw T5, O(T1) #Store T5 to M[T1+O] add TO, TO, 1 add T1, T1,4 add T2, T2,4 142: bne TO, T3, -7 #Loops if branch is taken 144: add TO, TO, 100 What is the PC value for the SW instruction? O 128 O 120 O 134 O 124 Calculate the branch target address? 0133 0 130 O-7 O 116 What happens after to becomes equal to 13? To increases by 100 OTO has the value of TO+(-7) O Branch is taken T4 is loaded with new value from memory What is the total number of instructions that get fully executed? O 12 O 101 O 1412 O 144 How many cycles it take to execute all instructions in the given code? O 2136 O 36 O 24 O 576 What is the final value of TO? 200 O 201 O 194 O 100
