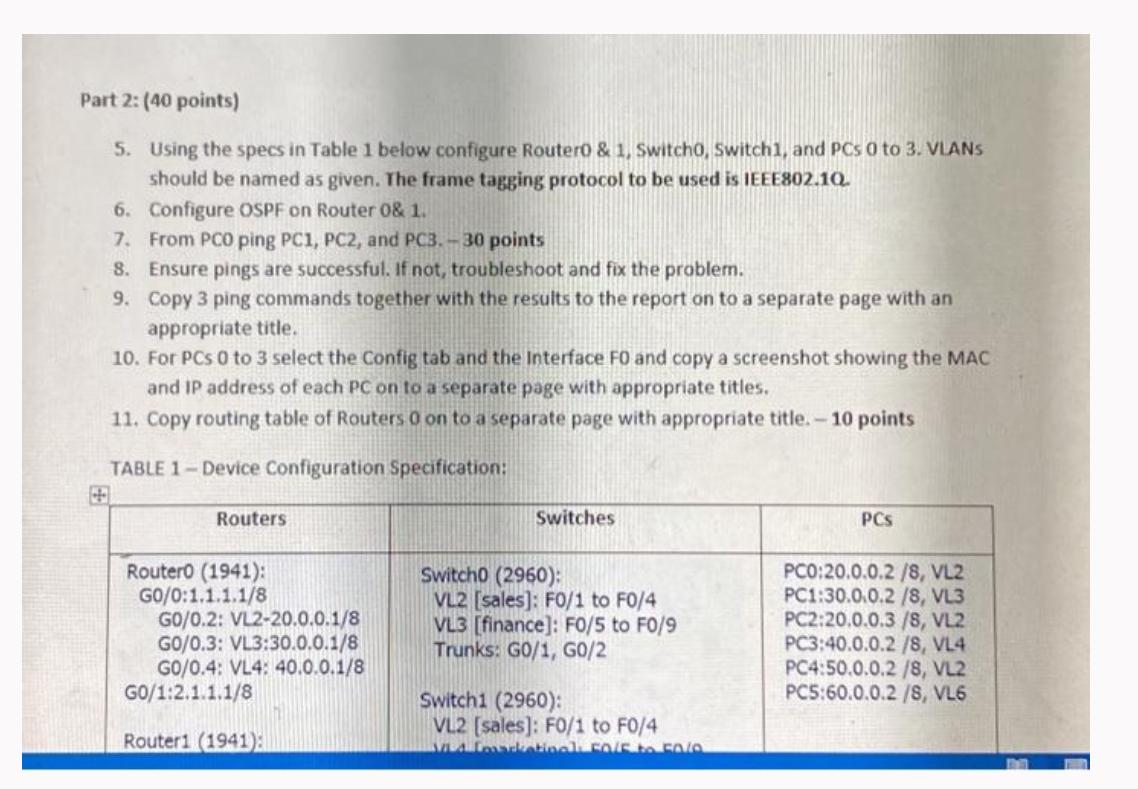

Part $2$: $(40$ points$)$

$5.$ Using the specs in Table $1$ below configure Routero & $1,$ Switcho, Switch$1,$ and PCS $0$ to $3.$ VLANs should be named as given. The frame tagging protocol to be used is IEEE$802\mathrm{.}10.$

$6.$ Configure OSPF on Router $0$&$1.$

$7.$ From $PC0$ ping $PC1,PC2,$ and $PC3,-30$ points

$8.$ Ensure pings are successful. If not, troubleshoot and fix the problem.

$9.$ Copy $3$ ping commands together with the results to the report on to a separate page with an appropriate title.

$10.$ For PCS $O$ to $3$ select the Config tab and the Interface FO and copy a screenshot showing the MAC and IP address of each PC on to a separate page with appropriate titles.

$11.$ Copy routing table of Routers $0$ on to a separate page with appropriate title. $-10$ points

TABLE $1-$ Device Configuration Specification:
