Question: Question 2: 1- Develop a network diagram based on the below data 2- What is the Total Project Duration? Task Id Duration (Days) Predecessor(s) A

Question 2: 1- Develop a network diagram based on

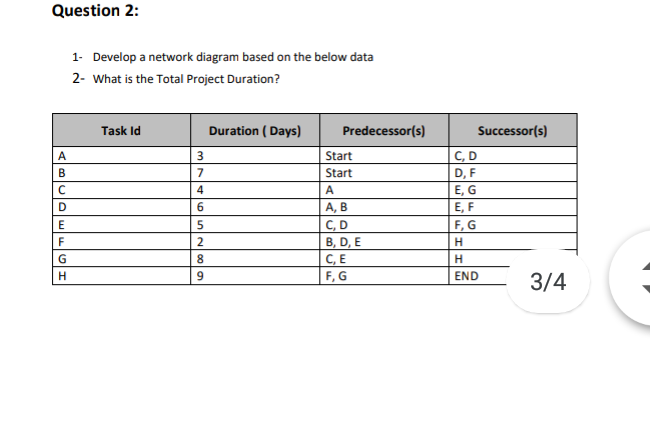

Question 2: 1- Develop a network diagram based on the below data 2- What is the Total Project Duration? Task Id Duration (Days) Predecessor(s) A B 3 7 4 D Start Start A A,B CD B, D, E CE F,G 100 Nuo Successor(s) CD DF EG EF F, G H H END 3/4 E F G H 5 2 8 9

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related General Management Questions!

Question 2: 1- Develop a network diagram based on the below data 2- What is the Total Project Duration? Task id Duration (Days) 3 B MINUN 4 6 D Predecessor(s) Start Start A AB CD B,D,E , F,G...

CPM Exercise D 1. Develop a network diagram based on above data 2. What is the Total Project duration

Question 3: 1. Develop a network diagram based on the below data 2- How many paths do we have in our diagram? 3- Which path is our Critical Path? 4- Map out your Forward & Backward Pass. 5- Calculate...

Question 3: 1- Develop a network diagram based on the below data 2. How many paths do we have in our diagram? 3. Which path is our Critical Path? 4. Map out your Forward & Backward Pass. 5- Calculate...

please the solution too that how you solve this. Thanks Question 3: 1. Develop a network diagram based on the below data 2. How many paths do we have in our diagram? 3. Which path is our Critical...

CPM Exercise E Task Name Duration (Days) A 5 B 2 C 7 D 8 E 6 END 1. Develop a network diagram based on above data 2. What is the Total Project duration? Predecessors A+2 lag days, B B C,D E

how to solve this using forward and backward pass ? Task Name Duration (Days) A Predecessor(s) 3 B 7 C 4 D A(S-S) E A,B 6 F D 5 G C,D 2 END E,F G 1. Develop a network diagram based on above data 2....

1. Develop a network diagram based on the below table 2. What is the project duration of this network? Taskid Duration (Days) Predecessor(s) Relationship 2 6 4 B D E F G 1 3 1 5 1 2 Start Start , C D...

Question 2 : 3 - Develop a network diagram based on the below data. Map out your Forward & Backward Pass. 4 - What is the Total Project Duration?
