Question: Replace the loading on the frame by a single resultant force, R = 9 9 1 . 0 6 N . Specify where the forces

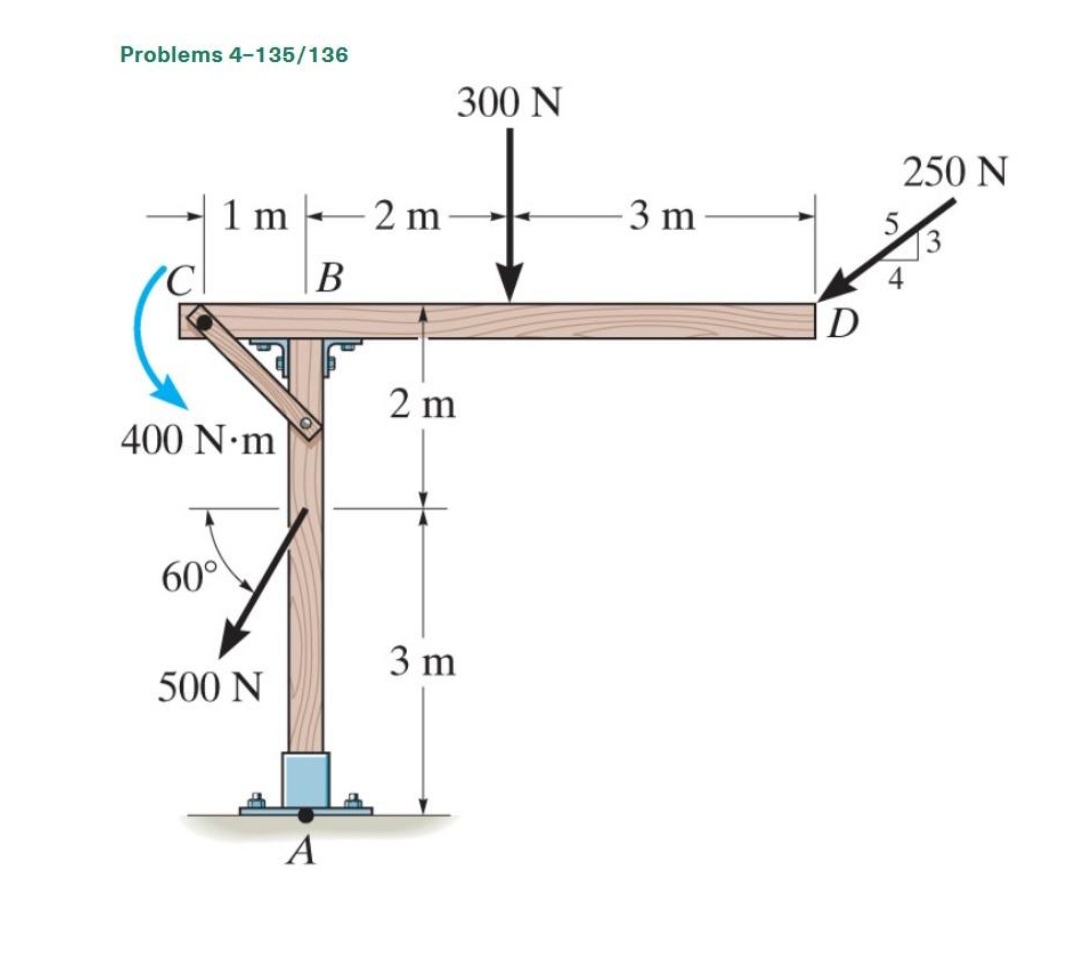

Replace the loading on the frame by a single resultant force, R=991.06N. Specify where the forces line of action intersects the top part of the frame CD, measured from end C. Problems 4-135/136
Replace the loading on the frame by a single

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Mechanical Engineering Questions!

Q:

Problem 2 a ) Replace the loading on the frame by a single resultant force. b ) Determine where its line of action intersects a vertical line along member AB , measured from A .

Q:

* 4 - 1 2 0 . Replace the loading on the frame by a single resultant force. Specify where its line of action intersects member A B , measured from A . 4 - 1 2 1 . Replace the loading on the frame by...

Q:

Replace the loading on the frame by a single resultant force. Suppose that F 1 = 4 5 0 N , F 2 = 6 5 0 N , F 3 = 9 0 0 N , and F 4 = 4 5 0 N . ( Figure 1 ) Figure Part A Determine the magnitude of...

Q:

Replace the loading on the frame by a single resultant force. Suppose that F 1 = 4 0 0 N , F 2 = 6 0 0 N , F 3 = 8 5 0 N , and F 4 = 2 5 0 N . ( Figure 1 ) Determine the magnitude of the resultant...

Q:

Replace the loading on the frame by a single resultant force. Suppose that F _ ( 1 ) = 2 0 0 lb , F _ ( 2 ) = 9 0 lb , and M = 5 5 0 lb * ft . ( Figure 1 ) Figure 1 of 1 Part A Determine the...

Q:

* 3 - 9 6 . Replace the loading acting on the post by a resultant force, and spedify where its line of action intersects the post A B , measured from point A . 3 - 9 7 . Replace the loading acting on...

Q:

Replace the loading on the frame by a single resultant force. Specify where its line of action intersects a vertical line along member A B , measured from A Hibbeler 1 4 t h E d Hibbeler 1 4 t h E d...

Q:

4 - 1 1 9 . Replace the loading on the frame by a single resultant force. Specify where its line of action intersects a vertical line along member A B , measured from A . Represente el sistema...

Q:

helpQUESTION 2 Replace the loading on the frame by a single resultant force. Specify where its line of action intersects a horizontal line along member C B , measured from end C . Figure Q 2

Q:

The magnitudes of the forces are F 1 = 4 N and F 2 = 8 N , while the distance x = 0 . 8 m . A couple moment of magnitude M = 1 5 N - m is applied in the direction shown. Replace the loading acting...
