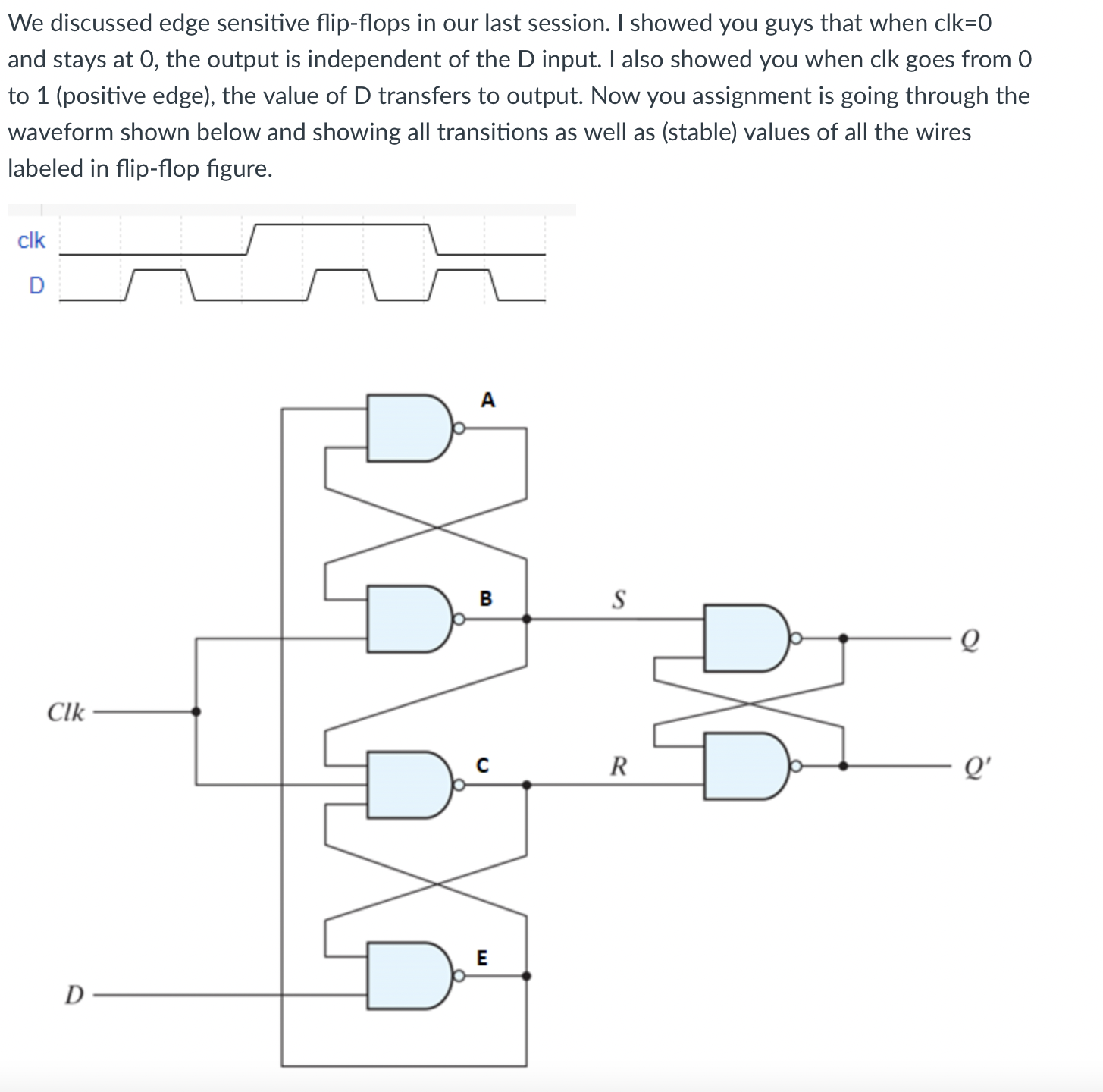

We discussed edge sensitive flip$-$flops in our last session. I showed you guys that when clk$=0$

and stays at $0,$ the output is independent of the $D$ input. I also showed you when clk goes from $0$

to $1($positive edge$),$ the value of $D$ transfers to output. Now you assignment is going through the

waveform shown below and showing all transitions as well as $($stable$)$ values of all the wires

labeled in flip$-$flop figure.
