Question: Write the VHDL code for the 1-bit ALU with three functions shown in the Figure: 1-bit ALU Operation Operation 00 and 01 or 10 XOR

Write the VHDL code for the 1-bit ALU with three functions

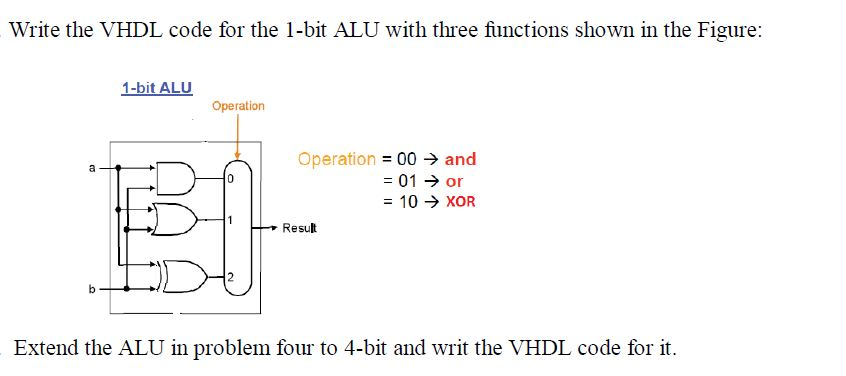

Write the VHDL code for the 1-bit ALU with three functions shown in the Figure: 1-bit ALU Operation Operation 00 and 01 or 10 XOR Result Extend the ALU in problem four to 4-bit and writ the VHDL code for it

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related Databases Questions!

I finished the first part and its code below: architecture Behavioral of alu is begin process(a,b,s) is begin case s is when "00" => result result result 4. Write the VHDL code for the 1-bit ALU with...
