Question: (10) The activity table is given below tivity 2/05/2ive Predecessor LF 0-1 Clear site 3 1-2 Survey and layout 5 2-3 Rough grade 7 3-4

(10) The activity table is given below tivity

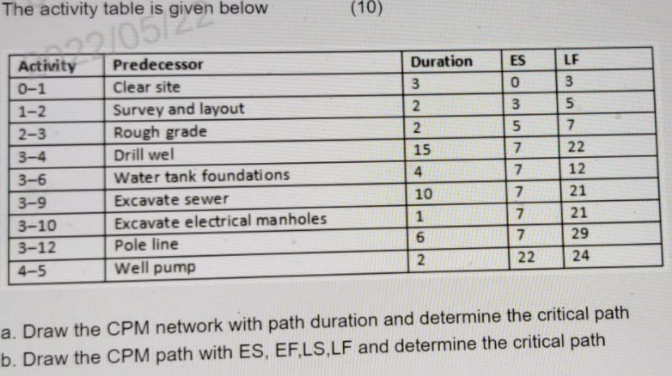

(10) The activity table is given below tivity 2/05/2ive Predecessor LF 0-1 Clear site 3 1-2 Survey and layout 5 2-3 Rough grade 7 3-4 Drill wel 22 3-6 Water tank foundations 12 3-9 Excavate sewer 21 3-10 Excavate electrical manholes 21 3-12 Pole line 29 4-5 Well pump 22 24 a. Draw the CPM network with path duration and determine the critical path b. Draw the CPM path with ES, EF,LS,LF and determine the critical path Duration 3 2 2 15 4 10 1 69 ES 0 3 5 7 7 7 7 7

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related General Management Questions!

Activity Predecessor 0-1 Clear site 1-21 Survey and layout 2-3 Rough grade 3-4 Drill wel 3-6 Water tank foundations 3-9 Excavate sewer 3-10 Excavate electrical manholes 3-12 Pole line 29 4-5 Well...

The activity table is given below Activity Predecessor Duration ES LE 0-1 Clear site 3 1-2 Survey and layout 2 2-3 Rough grade 2 7 3-4 Drill wel 15 22 3-6 Water tank foundations 4 12 3-9 Excavate...

The activity table is given below 22/051 given Activity Predecessor ES LF 0-1 Clear site 0 3 1-2 Survey and layout 3 5 2-3 Rough grade 5 7 3-4 Drill wel 7 22 3-6 Water tank foundations 7 12 3-9...

The activity table is given below Activity Predecessor 0-1 Clear site 1-2 Survey and layout 2 5 Rough grade 2 7 3-4 Drill wel 15 22 3-6 Water tank foundations 4 12 3-9 Excavate sewer 10 21 3-10...

Need urgent help!! The activity table is given below. Activity Predecessor Duration ES LF 0 1 Clear site 3 0 3 1 2 Survey and layout 2 3 5 2 3 Rough grade 2 5 7 3 4 Drill wel 15 7 22 3 - 6 Water tank...

Draw the cpm network with path duration and determine the critical path 76405 The activity table is given below 22/0519 Activity Predecessor Clear site Survey and layout Rough grade Drill wel Water...
