Question: Activity Preceding Activity Estimate in Months Start 0 D Start 4 A Start 6 F D,A 7 E D 8 G F,E 5 B F

Activity Preceding Activity Estimate in Months
Start 0
D Start 4
A Start 6
F D,A 7
E D 8
G F,E 5
B F 5
H G 7
C H 8
End C,B 0

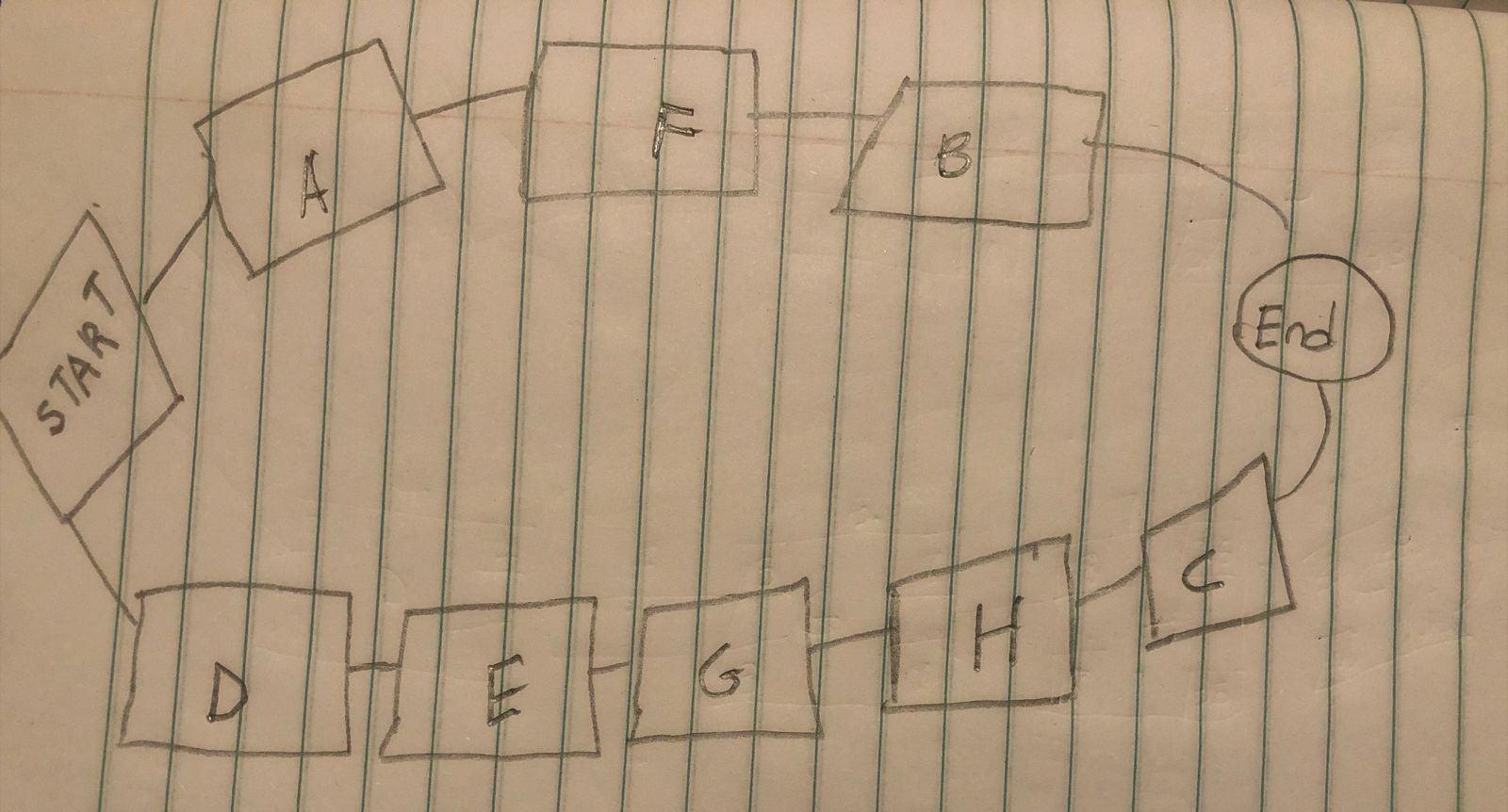

DRAW DIAGRAHA M EXACTLY LIKE THE ONE DRAWN BELOW WITH STEPS.

FILL IN THE NUMBERS

Activity Preceding Activity Estimate in Months Start 0 D Start 4

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
