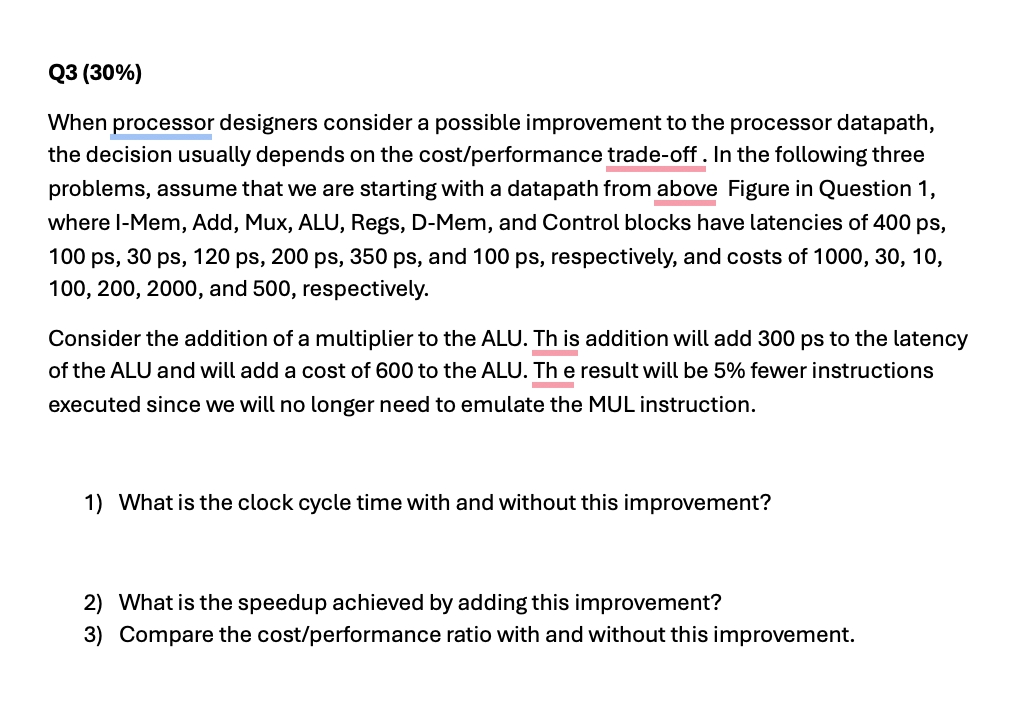

Q$3(30\%)$

When processor designers consider a possible improvement to the processor datapath,

the decision usually depends on the cost$/$performance trade$-$off. In the following three

problems, assume that we are starting with a datapath from above Figure in Question $1,$

where I$-$Mem, Add, Mux, ALU, Regs, D$-$Mem, and Control blocks have latencies of $400ps,$

$100$ ps$,30$ ps$,120$ ps$,200$ ps$,350$ ps$,$ and $100$ ps$,$ respectively, and costs of $1000,30,10,$

$100,200,2000,$ and $500,$ respectively.

Consider the addition of a multiplier to the ALU. Th is addition will add $300ps$ to the latency

of the ALU and will add a cost of $600$ to the ALU. The result will be $5\%$ fewer instructions

executed since we will no longer need to emulate the MUL instruction.

What is the clock cycle time with and without this improvement?

What is the speedup achieved by adding this improvement?

Compare the cost$/$performance ratio with and without this improvement.
