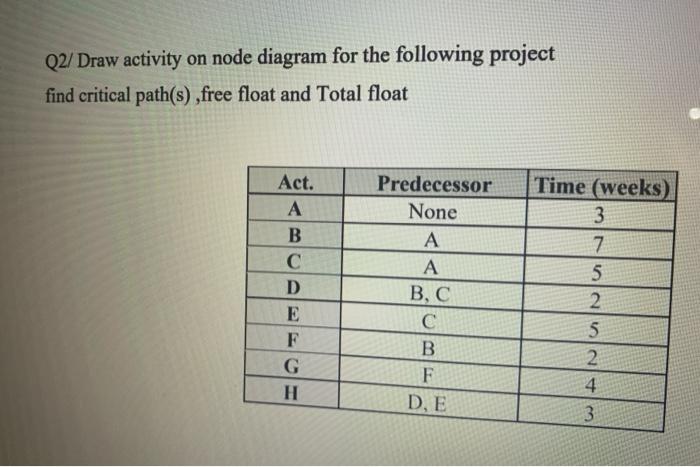

Question: Q2/ Draw activity on node diagram for the following project find critical path(s),free float and Total float Act. A B D E F G H

Q2/ Draw activity on node diagram for the following project find critical path(s),free float and Total float Act. A B D E F G H Predecessor None A A B, C C B F D, E Time (weeks) 3 7 5 2 5 2 4 3

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
