Question: Given is a CPM project network diagram as shown below. C F Start E H End B D G A B Activity days Start 0

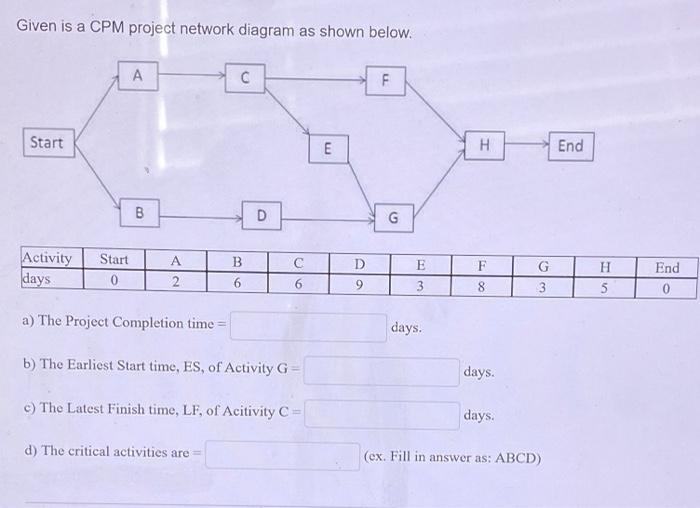

Given is a CPM project network diagram as shown below. C F Start E H End B D G A B Activity days Start 0 F 2 D 9 E 3 6 G 3 6 H 5 End 0 8 a) The Project Completion time days. b) The Earliest Start time, Es, of Activity G days. c) The Latest Finish time, LF, of Acitivity C = days. d) The critical activities are (ex. Fill in answer as: ABCD)
