Question: Given is a PERT project network diagram as shown below. A F Start E E H End B D G F Activity days G Start

Given is a PERT project network diagram as shown

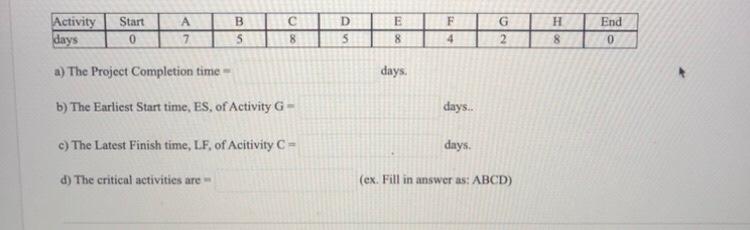

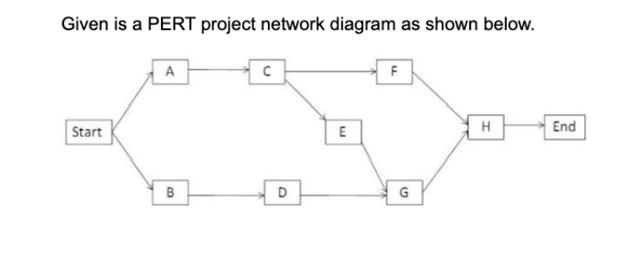

Given is a PERT project network diagram as shown below. A F Start E E H End B D G F Activity days G Start 0 A 7 lol B 5 WO E 8 End 0 8 4 2 log a) The Project Completion time- days b) The Earliest Start time, ES, of Activity G - days.. c) The Latest Finish time, LF, of Acitivity C days. d) The critical activities are (ex. Fill in answer as: ABCD)

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
